Bridge saw / TC925 / 5-axis

Bridge saw / TC925 / 5-axis

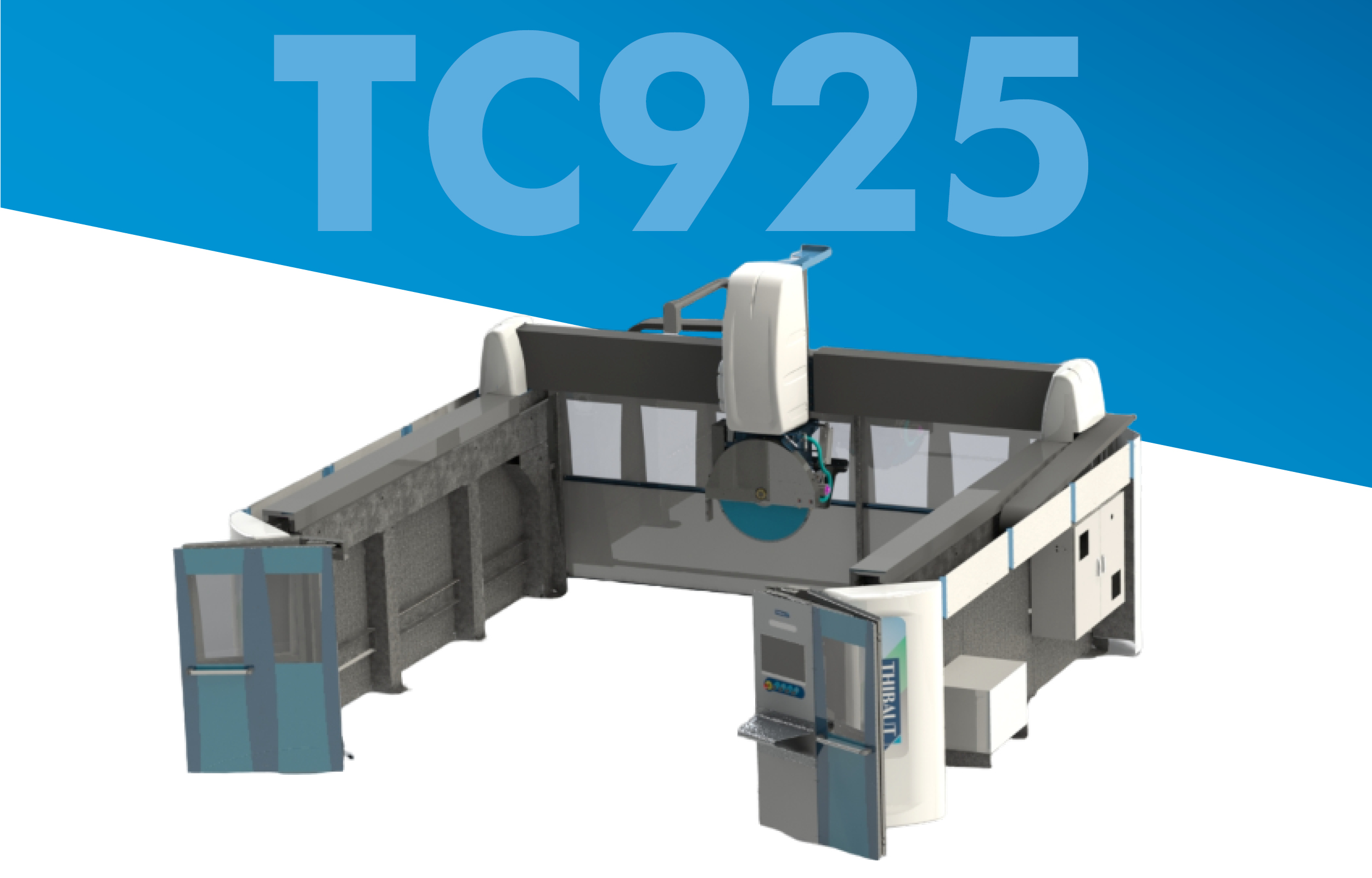

The TC925 is a true 5-axis numerically controlled cutting and shaping centre. It can automatically cut in all directions up to 310 mm thick. The 360° rotation of the head does not require a turntable, making it a very compact machine. The TC925 has a spindle power of up to 28.9 kW (S6).



REQUEST MORE INFORMATION


Technical data:

Working capacity mm
Stroke X 3700
Stroke Y 3700/6000/7020
Stroke Z 700



Sawing capacity mm
Cutting thickness 310
Min. disc diameter 350
Max. disc diameter 950



Axes Speed m/min
X 40
Y 40
Z 7,5

A-axis tilt: 0°/90°

C-axis rotation: ±200°

Spindle motor power : 28.9kW (S6)

Tool rotation speed: 0/6000 tr/min

Total weight: 7500 kg

Standard equipment:

Cross Laser Line Laser
Mechanically welded walls Quick-opening housing
Touch-screen remote control Working table 3600x2000mm
Retractable front stops Machine doors with 19″ console
Electrical cabinet Thibaut drill and milling attachment



Optional extras:

Watering for milling tools Large size flange
Camera Abrasive stone for tool sharpening
ACS (Angle Cut Solution) AVS (Automatic Vacuum Solution max. 750kg)
Slab thickness sensor



Software:

Included:

Pilot® Interface developed by Thibaut

logo pilot by thibaut

Express Jobs Powerful program including parametric shapes, very easy to use

Optional:

T’Cut 2D cutting software
Vein Matching Software Software for 3D visualization of pieces with their veins
eT’CAM 2D shaping software designed for decoration
T’CAD/T’CAM 3D design and shaping software

Thibaut Customer Service:

Bridge Saw TC625 5-axis stone cutting customer Service Thibaut

Our machines are connected to internet and equipped with remote connection software with firewall. This allows quick diagnosis and remote intervention by our Thibaut Customer Service technicians.

A Thibaut Customer Space will give you access to the available documentation of your Thibaut machines and you can make your requests to Thibaut Customer Service.


Quickly request a quote from your sales representative or via the contact form.
