Bridge Saw / TC725 / 5-axis

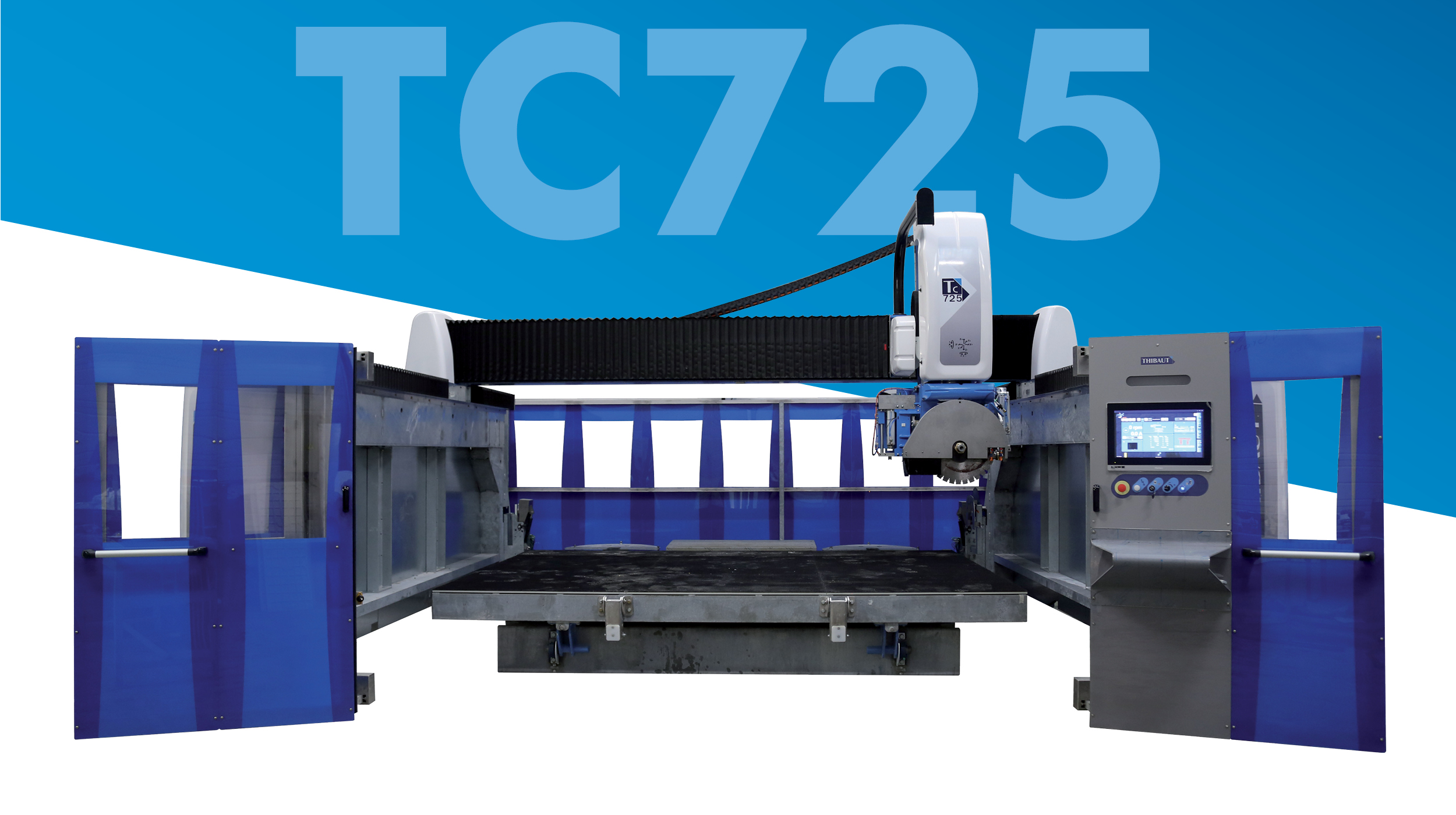

The TC725 is a true 5-axis numerically controlled sawing and shaping centre. The TC725 can automatically cut in all directions up to 250 mm thick or profile workpieces of all shapes. The 360° rotation of the head does not require a rotary table, which makes it a very compact machine.

Powerful, the TC725 has a spindle up to 19.9 kW (S6). Its variable speed from 0 to 6000 rpm and its various options give it a very high degree of autonomy and allow it to carry out all types of operations such as drilling, profiling, trimming, sawing, mitre cutting, brushing, etc.



REQUEST MORE INFORMATION


Technical data:

Working capacitymm
Stroke X3700
Stroke Y3700
Stroke Z700

Bridge Saw TC725 5-axis stone cutting

Sawing capacitymm
Cutting thickness250
Min. disc diameter350
Max. disc diameter750



AxesSpeed m/min
X40
Y40
Z15

Bridge Saw TC725 5-axis stone angle cut

A-axis tilt : 0°/90°

C-axis rotation : ±200°

Spindle motor power : 19.9kW (S6)

Tool rotation speed : 0/6000 tr/min

Total weight : 7300 kg

Standard equipment:

Cross LaserLine Laser
Mechanically welded wallsQuick-opening housing
Touch-screen remote controlWorking table 3600x2000mm
Retractable front stopsMachine doors with 19″ console
Electrical cabinet1/2 gas adapter for tools

Bridge Saw TC725 5-axis stone remote device

Optional extras:

Watering for milling toolsLarge size flange
CameraAbrasive stone for tool sharpening
ACS (Angle Cut Solution)AVS (Automatic Vacuum Solution max. 500kg)
Tilting tableDisc case magazine
Slab thickness sensorDisc magazine
Linear 8 tools magazine

Bridge Saw TC725 5-axis stone ACS angle cutting solution

Software:

Included:

Pilot®Interface developed by Thibaut

logo pilot by thibaut

Express JobsPowerful program including parametric shapes, very easy to use

Optional:

T’Shape3D shaping software
T’Cut2D cutting software
Vein Matching SoftwareSoftware for 3D visualization of pieces with their veins
eT’CAM2D shaping software designed for decoration
T’CAD/T’CAM3D design and shaping software

Available versions:

Monobloc : Monobloc structure composed of low walls and beams in hot-galvanized steel

M : Mechanically welded structure consisting of low walls on feet

TOPS (Thibaut Optimized Processing Solution) : through feed system to optimize the production of slabs

Thibaut Customer Service:

Bridge Saw TC725 5-axis stone cutting customer Service Thibaut

Our machines are connected to internet and equipped with remote connection software with firewall. This allows quick diagnosis and remote intervention by our Thibaut Customer Service technicians.

A Thibaut Customer Space will give you access to the available documentation of your Thibaut machines and you can make your requests to Thibaut Customer Service.


Quickly request a quote from your sales representative or via the contact form.
