Bridge Saw / TC1100 / 5 axis

Bridge Saw / TC1100 / 5 axis

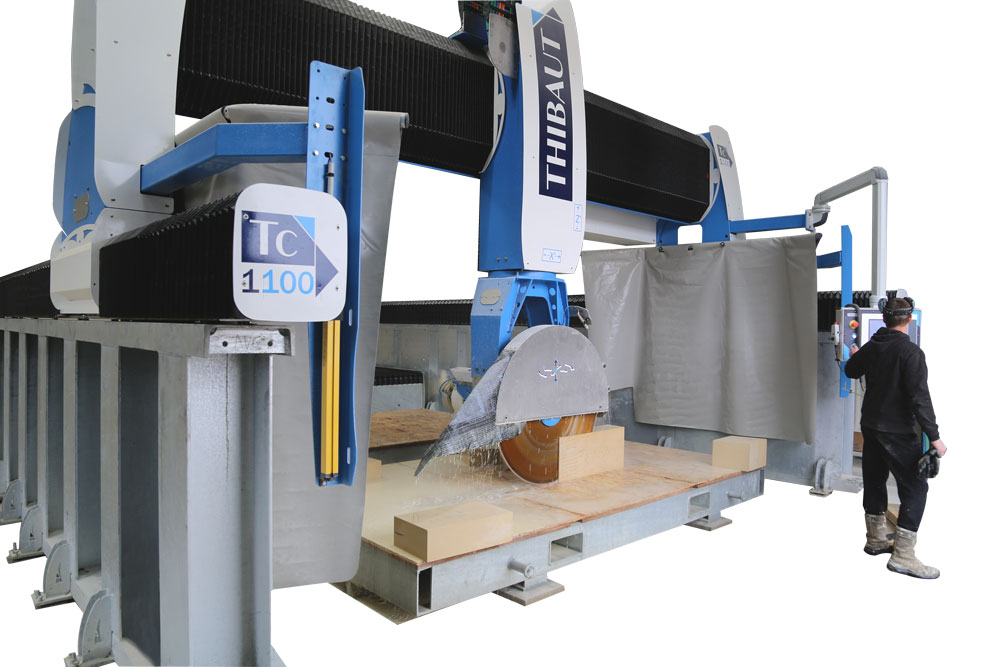

TC1100 5-axis CN machine (3 or 5 interpolated according to the versions), the TC1100 permits to make cuts in all directions automatically without moving the slab. The 360° disc rotation does not require any turning table. The machine is therefore very compact and permits a quick positioning of the slabs.

The TC1100 permits to achieve very easily and with very high precision all cuts in materials up to 410 mm thickness. The versions with manual or automatic tool changing permit to go further and to make drillings, profiling, milling operations, … The TC1100 is much more than a sawing machine: it’s a multipurpose machine



REQUEST MORE INFORMATION Download the brochure of this range


Technical data:

Working capacity mm
Stroke X 3600
Stroke Y 4600 à 15100
Stroke Z 1200

5-axis bridge saw thibaut stone cutting cnc machine

Sawing capacity mm
Cutting thickness 410
Min. disc diameter 490
Max. disc diameter 1140

Bridge Saw TC1100 5-axis stone cutting cnc

Axes Speed m/min
X 40
Y 40
Z 5



B-axis tilt: 0°/100°

C-axis rotation: ±360°

Spindle motor power: 31kW (S6)

Tool rotation speed: 0/6000 tr/min

Total weight: 9250 kg

Standard equipment:

Cross Laser Line Laser
BT-50 Tool holder Remote control
Touch-screen 15″ console Lubrication unit

Bridge Saw TC1100 5-axis stone CNC machine

Optional extras:

Tool magazine for up to 11 tools Tool sensor
Camera Column lathe
Fixed, mobile or tilting table

Bridge Saw TC1100 5-axis stone cutting CNC

Software:

Included:

Express Jobs Powerful program including parametric shapes, very easy to use

Optional:

T’Shape 3D shaping software
T’Cut 2D cutting software
Vein Matching Software Software for 3D visualization of pieces with their veins
eT’CAM 2D shaping software designed for decoration
T’CAD/T’CAM 3D design and shaping software

Available versions:

Track lengths available :

*5880 mm

*8505 mm

*11130 mm

*13755 mm

*16 380 mm

Thibaut Customer Service:

Bridge Saw TC1100 5-axis stone cutting customer Service Thibaut

Our machines are connected to the internet and equipped with remote connection software with a firewall. This allows quick diagnosis and remote intervention by our Thibaut Customer Service technicians.

A Thibaut Customer Space will give you access to the available documentation of your Thibaut machines and you can make your requests to Thibaut Customer Service.


Quickly request a quote from your sales representative or via the contact form.
