Bridge Saw / TC625 TOPS / 5-axis

Bridge Saw / TC625 TOPS / 5-axis

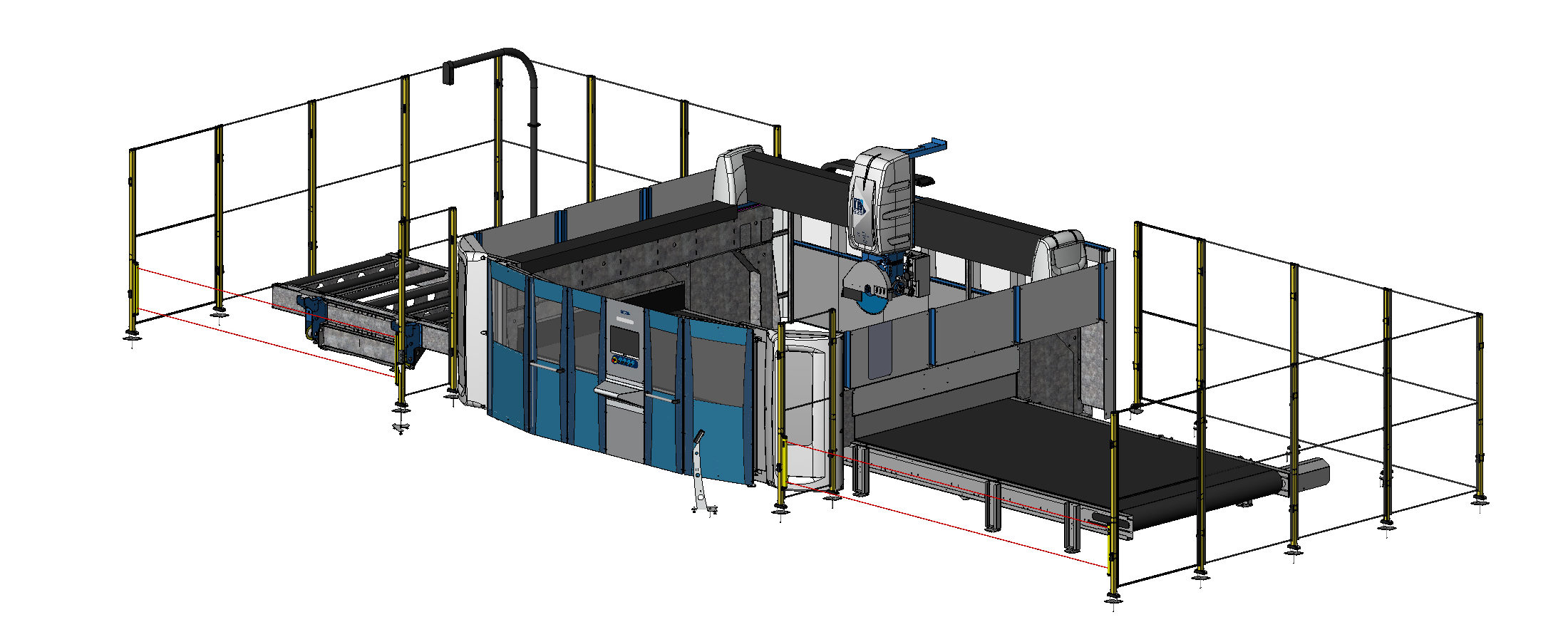

The TC625 TOPS Y 3700 mm version has a 2000mm or 2600mm wide conveyor belt which is fed from left to right.

TOPS (Thibaut Optimized Processing Solution): through-feed system to optimize the production of slabs.



REQUEST MORE INFORMATION Download the brochure of this range


Technical data:

Working capacity mm
Stroke X 3970
Stroke Y 2300
Stroke Z 500



Sawing capacity mm
Cutting thickness 200
Min. disc diameter 300
Max. disc diameter 650



Axes Speed m/min
X 40
Y 40
Z 15



A-axis tilt: 0°/90°

C-axis rotation: ±200°

Spindle motor power: 13.2kW (S6)

Tool rotation speed : 0/6000 tr/min

Total weight: 7700 kg

Standard equipment:

Cross Laser Line Laser
Mechanically welded walls Quick-opening housing
Touch-screen remote control Working table 3600x2000mm
Retractable front stops Machine doors with 19″ console
Electrical cabinet 1/2 gas adapter for tools
Wide conveyor belt Belt cleaning ramp
Safety Fences



Optional extras:

Watering for milling tools Large size flange
Camera Abrasive stone for tool sharpening
ACS (Angle Cut Solution) AVS (Automatic Vacuum Solution max. 500kg)
Lower grooving device Deposit table
Slab thickness sensor Tool sensor
Stone cleaning ramp and stone dryer Loading table (fixed or tilting)



Software:

Included:

Pilot® Interface developed by Thibaut

logo pilot by thibaut

Express Jobs Powerful program including parametric shapes, very easy to use

Optional:

T’Shape 3D shaping software
T’Cut 2D cutting software
Vein Matching Software Software for 3D visualization of pieces with their veins
eT’CAM 2D shaping software designed for decoration
T’CAD/T’CAM 3D design and shaping software

Thibaut Customer Service:

Bridge Saw TC625 5-axis stone cutting customer Service Thibaut

Our machines are connected to the internet and equipped with remote connection software with a firewall. This allows quick diagnosis and remote intervention by our Thibaut Customer Service technicians.

A Thibaut Customer Space will give you access to the available documentation of your Thibaut machines and you can make your requests to Thibaut Customer Service.


Quickly request a quote from your sales representative or via the contact form.
