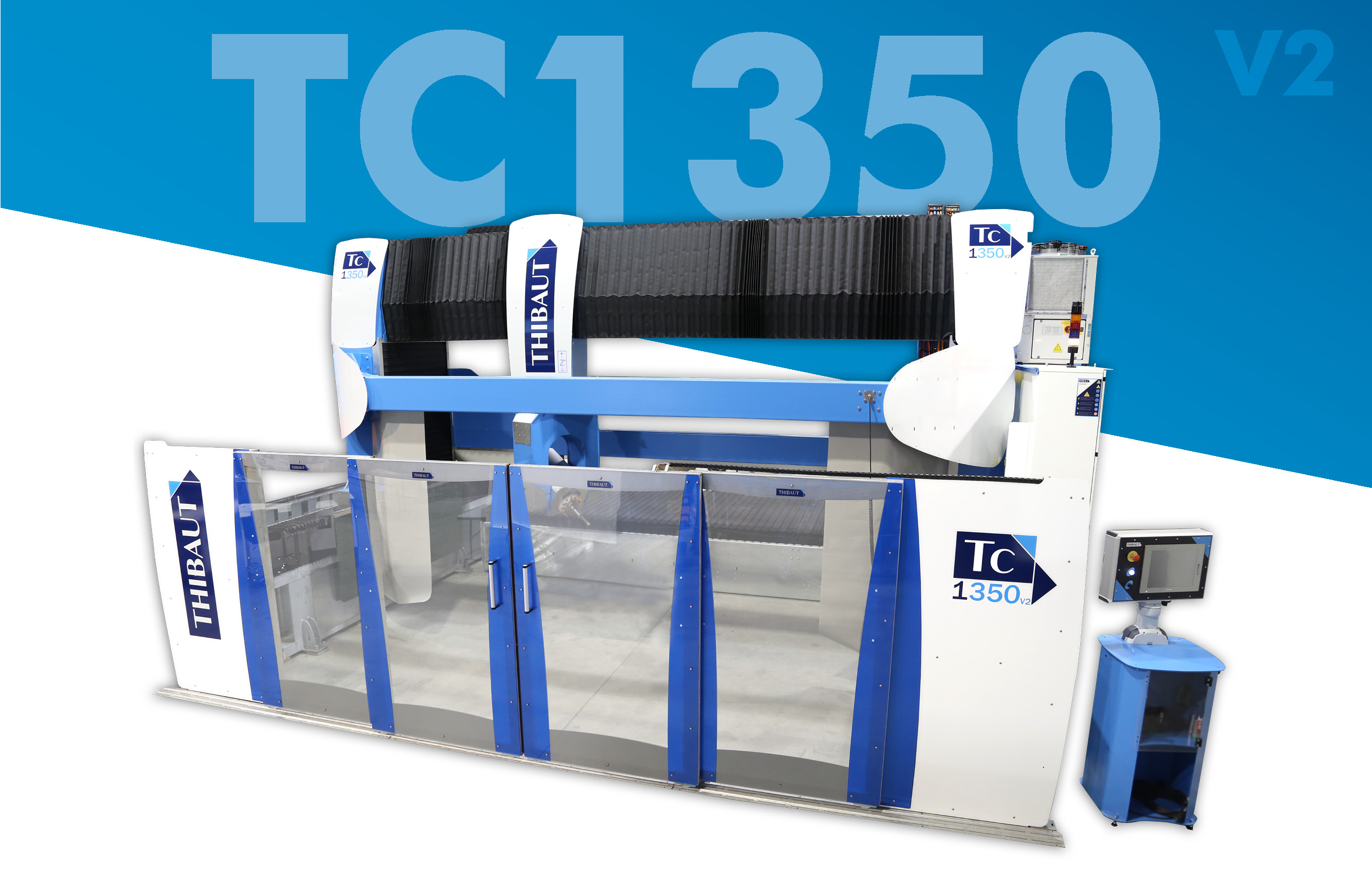

Bridge Saw / TC1350 V2 / 5 axis

Back
Bridge Saw / TC1350 V2 / 5 axis

5 axis CN machine (3 or 5 interpolated according to the versions), the TC1350 V2 permits to make cuts in all directions automatically without moving the slab.
The 360° disc rotation does not require any turning table.



REQUEST MORE INFORMATION


Technical data:

Working capacitymm
Stroke X3600
Stroke Y4600 à 14600
Stroke Z1500



Sawing capacitymm
Cutting thickness500
Min. disc diameter
Max. disc diameter1395



AxesSpeed m/min
X30
Y25
Z8



B-axis tilt : 0°/180°

C-axis rotation : ±360°

Spindle motor power : 42kW (S6)

Tool rotation speed : 0/8000 rpm

Voltage: 400-500V / 50-60Hz

Standard equipment:

Cross LaserLine Laser
Lubrication unitRemote control
Touch-screen 15″ console1 disc housing Ø1650 mm



Optional extras:

Fixed, mobile or tilting tableTool sensor
CameraTool magazine 11 slots

Software:

Included:

Express JobsPowerful program including parametric shapes, very easy to use

Optional:

T’Shape3D shaping software
T’Cut2D cutting software
Vein Matching SoftwareSoftware for 3D visualization of pieces with their veins
eT’CAM2D shaping software designed for decoration
T’CAD/T’CAM3D design and shaping software

Available versions:

Track lengths available :

*5880 mm

*8505 mm

*11130 mm

*13755 mm

*16 380 mm

Thibaut Customer Service:

Bridge Saw TC1100 5-axis stone cutting customer Service Thibaut

Our machines are connected to internet and equipped with remote connection software with firewall. This allows quick diagnosis and remote intervention by our Thibaut Customer Service technicians.

A Thibaut Customer Space will give you access to the available documentation of your Thibaut machines and you can make your requests to Thibaut Customer Service.


Quickly request a quote from your sales representative or via the contact form.
