Bridge saw / TC1600 / 5-axis

Bridge saw / TC1600 / 5-axis

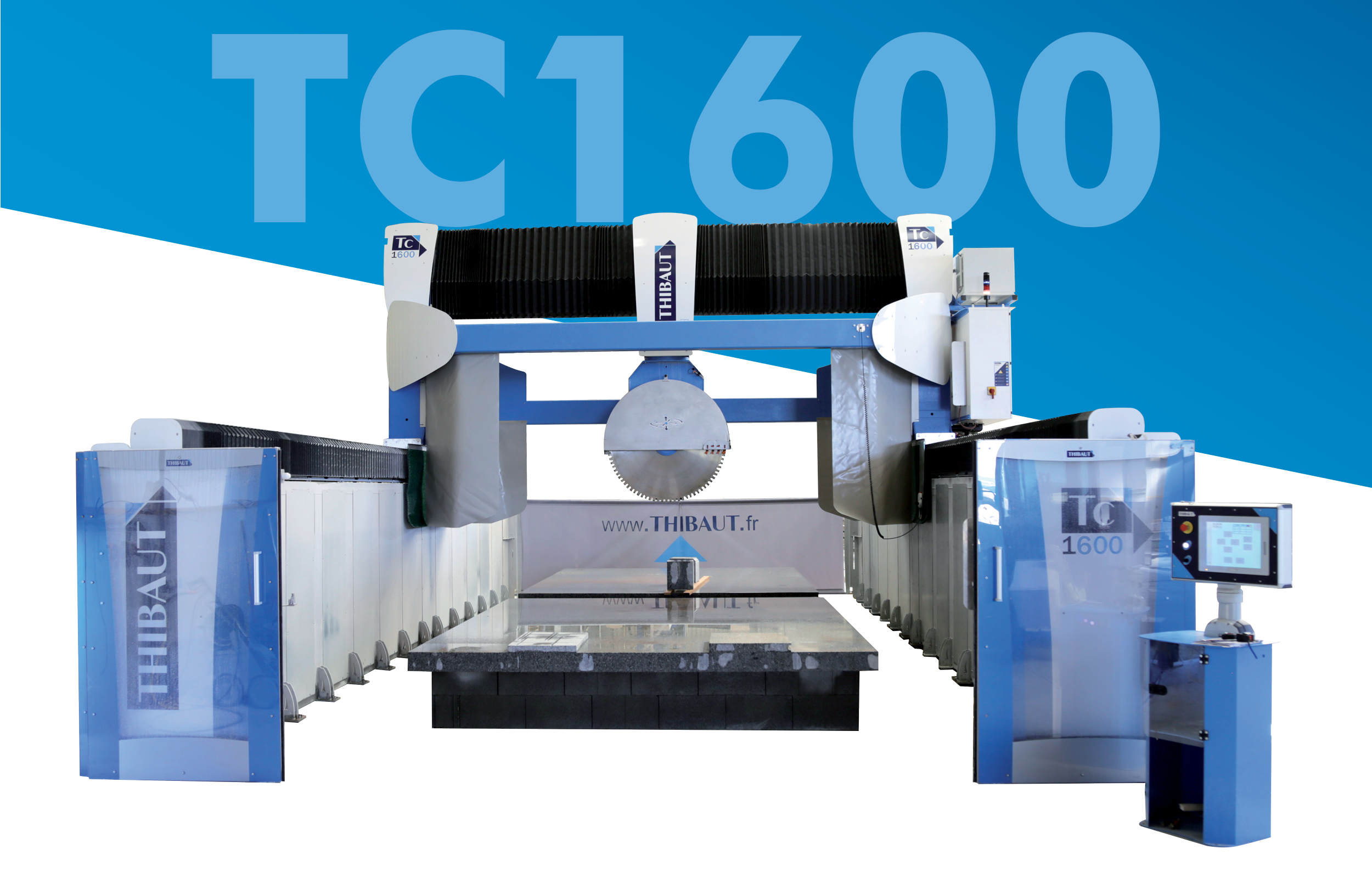

The TC1600 is a genuine 5-axis numerically controlled cutting and shaping centre. It allows cuts to be made in all directions automatically without moving the slice, up to a thickness of 650 mm.

Powerful and endowed with a strong torque, this machine is ideal for roads and solid stone.



REQUEST MORE INFORMATION


Technical data:

Working capacity mm
Stroke X 3350
Stroke Y from 4100 to 14600
Stroke Z 1500

Brückensäge TC1600 5 achsen

Sawing capacity mm
Cutting thickness 650
Min. disc diameter 980
Max. disc diameter 1650

Brückensäge TC1600 5 achsen stein

Axes Speed m/min
X 30
Y 25
Z 8



B-axis tilt: 0°/100°

C-axis rotation: ±200°

Spindle motor power: 61kW (S6)

Tool rotation speed: 0/1500 tr/min

Voltage: 400-500V / 50-60Hz

Standard equipment:

Cross Laser Line Laser
Safety machine doors Ergonomic button box
Remote control Electrical cabinet
Automatic centralized lubrication 1 disc housing Ø1650 mm
Touchscreen console 15″

Software:

Included:

Express Jobs Powerful program including parametric shapes, very easy to use

Optional:

T’Shape 3D shaping software
T’Cut 2D cutting software
Vein Matching Software Software for 3D visualization of pieces with their veins

Available versions:

Longueurs de chemin de roulement possibles :
* 5 880 mm
* 8 505 mm
* 11130 mm
* 13 755 mm
* 16 380 mm

Thibaut Customer Service:

TC1600 débiteuse service client thibaut

Our machines are connected to the internet and equipped with remote connection software with a firewall. This allows quick diagnosis and remote intervention by our Thibaut Customer Service technicians.

A Thibaut Customer Space will give you access to the available documentation of your Thibaut machines and you can make your requests to Thibaut Customer Service.


Quickly request a quote from your sales representative or via the contact form.
