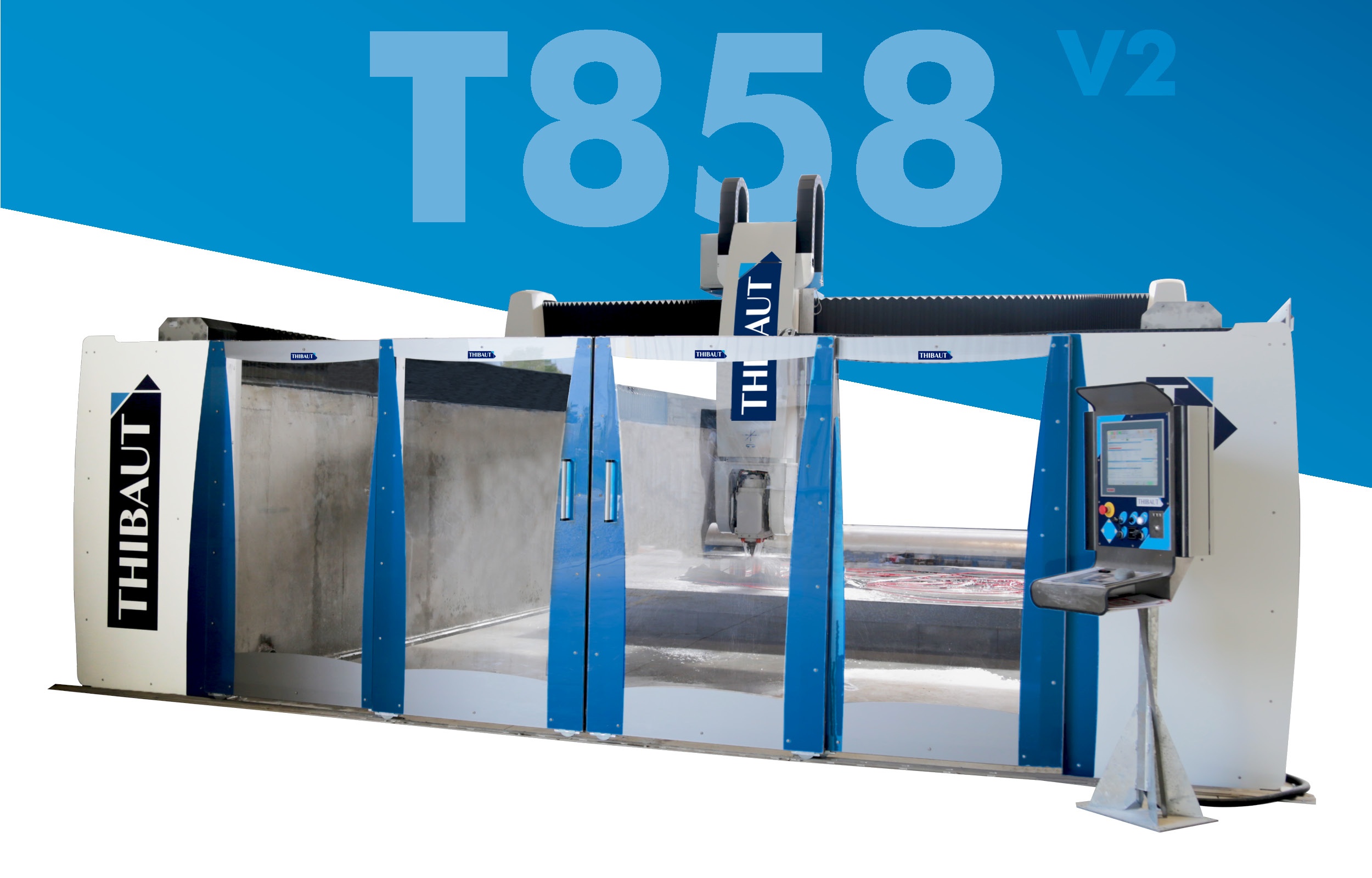

The T858V2 machining center, with its 5 interpolated axes, is a versatile high-performance machine for performing complex 3D shaping and polishing operations for the architectural concrete market.
The compact spindle provides very high fineness in machining operations, and the maximum speed of 10,000 rpm allows the use of very small diameter tools, such as engraving tools.
Available in several versions: monobloc frame, on concrete walls or on mechanically welded walls (several lengths of raceways available). Depending on the version, the number of possible tool locations in the magazine varies from 36 to 135, allowing a high operating autonomy.
Pneumatic pressure associated with the spindle
World premiere on a 5 axes machining center: working in all directions and automatically controlled. Allows polishing of surfaces, arrows, fleeing chamfers and thick edges. Arises quality and speed of polishing, reduces tools wear.
B3 head with oscillating segments (Pad disc 140 mm long).
Ideal for hard surfaces or repolishing scratched surfaces.
Angle drive with automatic tool changing, for straight edges polishing.
Allow square openings, polishing all the way to the corner with no manual intervention. Can also be used for grooving or polishing curved edges.
45 TOOL LINEAR MAGAZINE ON 2 ROWS
45 spaces for tools Ø maxi 150 mm
Equipped with a retractable protection housing
Possibility to program up to 150 tools
Optional: 2 additional rows for a total of 90 spaces
Z vertical stroke = 800/1200 mm
Power 12/22 kW
