    5 AXIS SHAPING AND POLISHING CENTER



    REQUEST MORE INFORMATION


    A great working capacity for a real production center

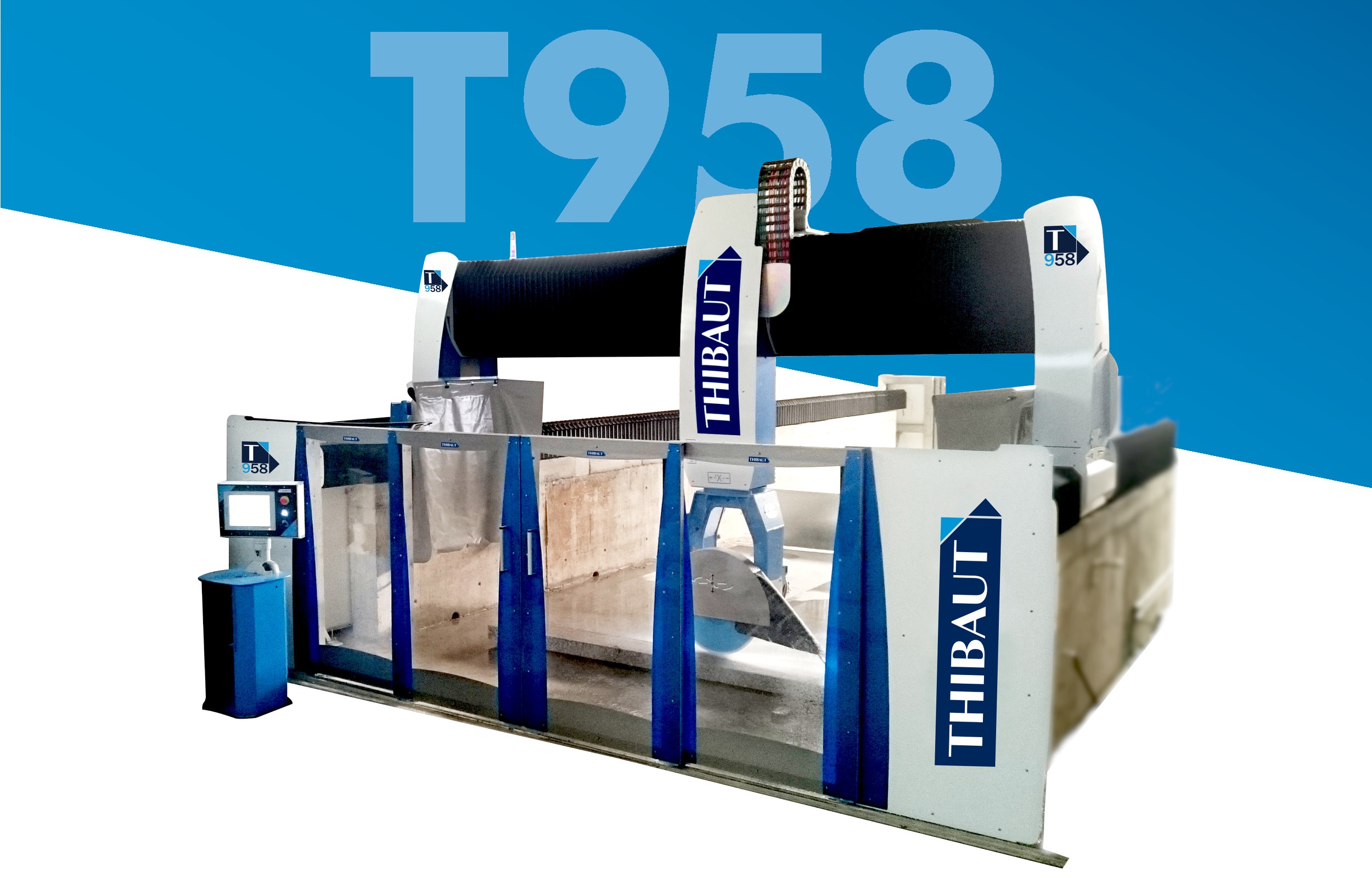

    Machining center T958, with its 5 interpolated axes, is a versatile machine with high performances to achieve complex 3D shaping and polishing operations for monuments, architectural concrete, construction & landscaping and vanities & kitchentops markets. The T958 has a very performing software specially developped for stone industry.
    Available in different length of runway up to 21,5 m. Tool magazine installed either on the right or left hand side or in the middle for pendular work.

    A multipurpose sawing center

    5 axe CN machine the T958 permits to use a disc Ø1100 mm to make cuts in all directions automatically without moving the slab in materials up to 410 mm thickness.The 360° disc rotation avoids any turning table. The machine is therefore very compact and permits a quick positioning of the slabs. The T958 permits to achieve very easily and with a very high precision all cuts. The innovative manual or automatic tool changing permit to go further and to make drillings, profiling, milling operations … making the T958 a real performing shaping center.

    Programming straight on the machine

    1 / Via remote control for a manual use
    2 / Via the colour touch screen and the «Express Cut» program (option) :
    Performing program including parametric shapes, very simple to use, with
    which it is also possible to draw thanks to the laser dimension selection or by coordinates.
    3 / T’Cut : Software allowing quick and optimised cuts in 2D (kitchentops, bathroom …)

    Remote programming : T’CAD T’CAM, a performing CFAO

    The T958 is supplied with a brand new specially developed TCad/TCam software in 3D in its 4th version specially developped for our markets. This is one of the most performing available and its innovations are specific for the hard materials. It can be used by new operators via the wizzard as well as trained operators. You can visualize the pieces in 3D and program from the simplest to the most precise machining or polishing operations.

    T’CAD : flexible and accessible

    • Possibility at any given time to modify a part of the drawing
    • Intuitive drawing with smart cursor
    • Visualization in 3D at each step of the drawing process
    • Positioning of vacuum pads and stops directly on the drawing

    T’CAM : friendly and productive

    • Optimization of tools’ work (time savings on some operations)
    • Control of collisions between tool and the piece to be machined
    • Visualization in 3D of the machine and machinings allowing to reach a high level of finishing

    A handy interside for tools’ and machining sequences setting

    Tool library to set all tools to asign them to any machine of the workshop using T’CAD T’CAM software (machining/sawing centers)
