Integrated workflow: Cut, mill recesses, drill and polish edges (flat and curved) without ever moving the workpiece.
High-performance spindle: Powerful motorization for superior cutting and polishing speeds, even on ultra-compact materials (ceramics, Dekton).
Advanced 5-axis kinematics: for surgically precise miter cuts and high-volume 3D machining.
Maximum autonomy: high-capacity automatic tool magazine and suction cup handling system (optional) for production in hidden time.

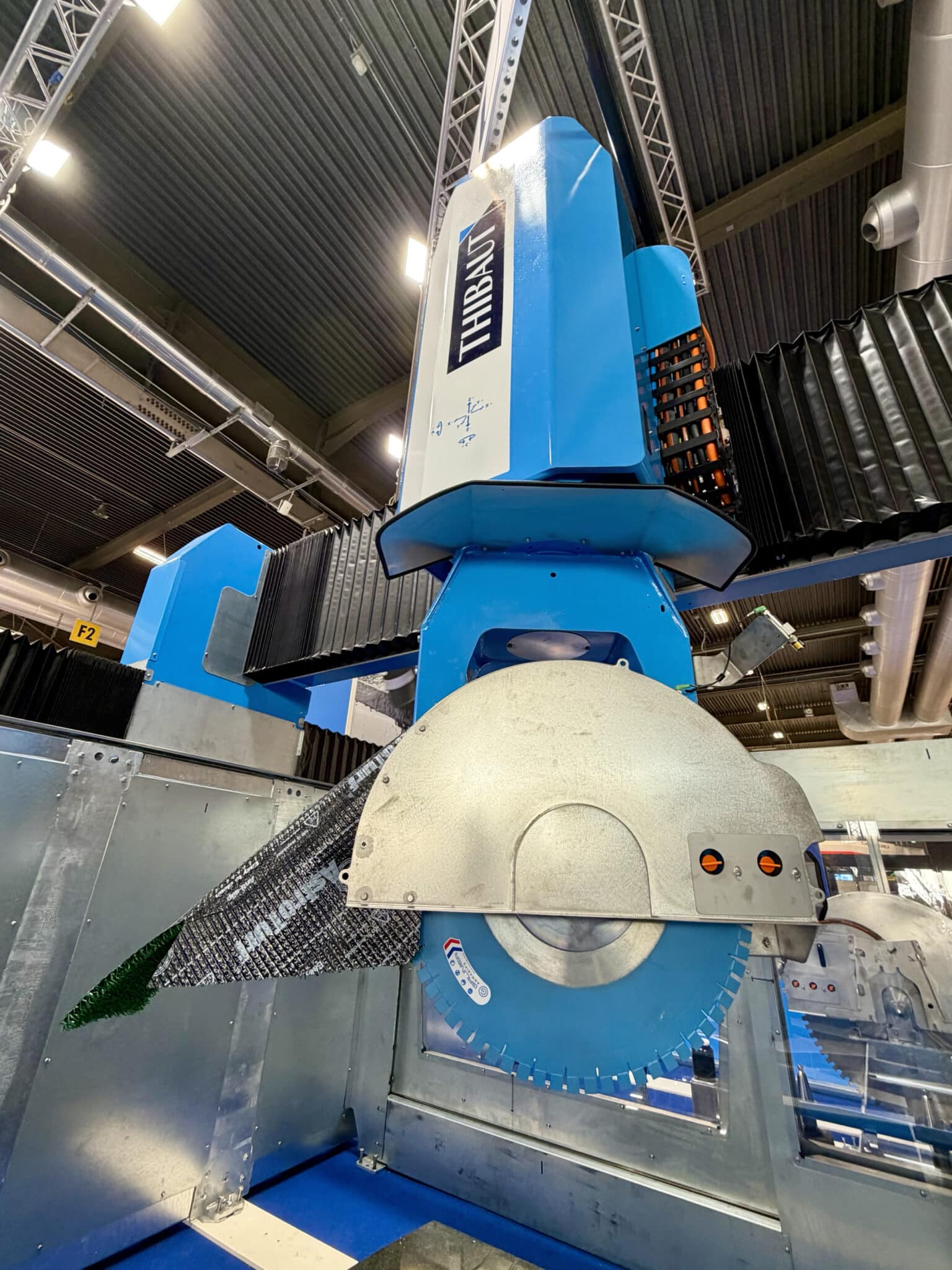

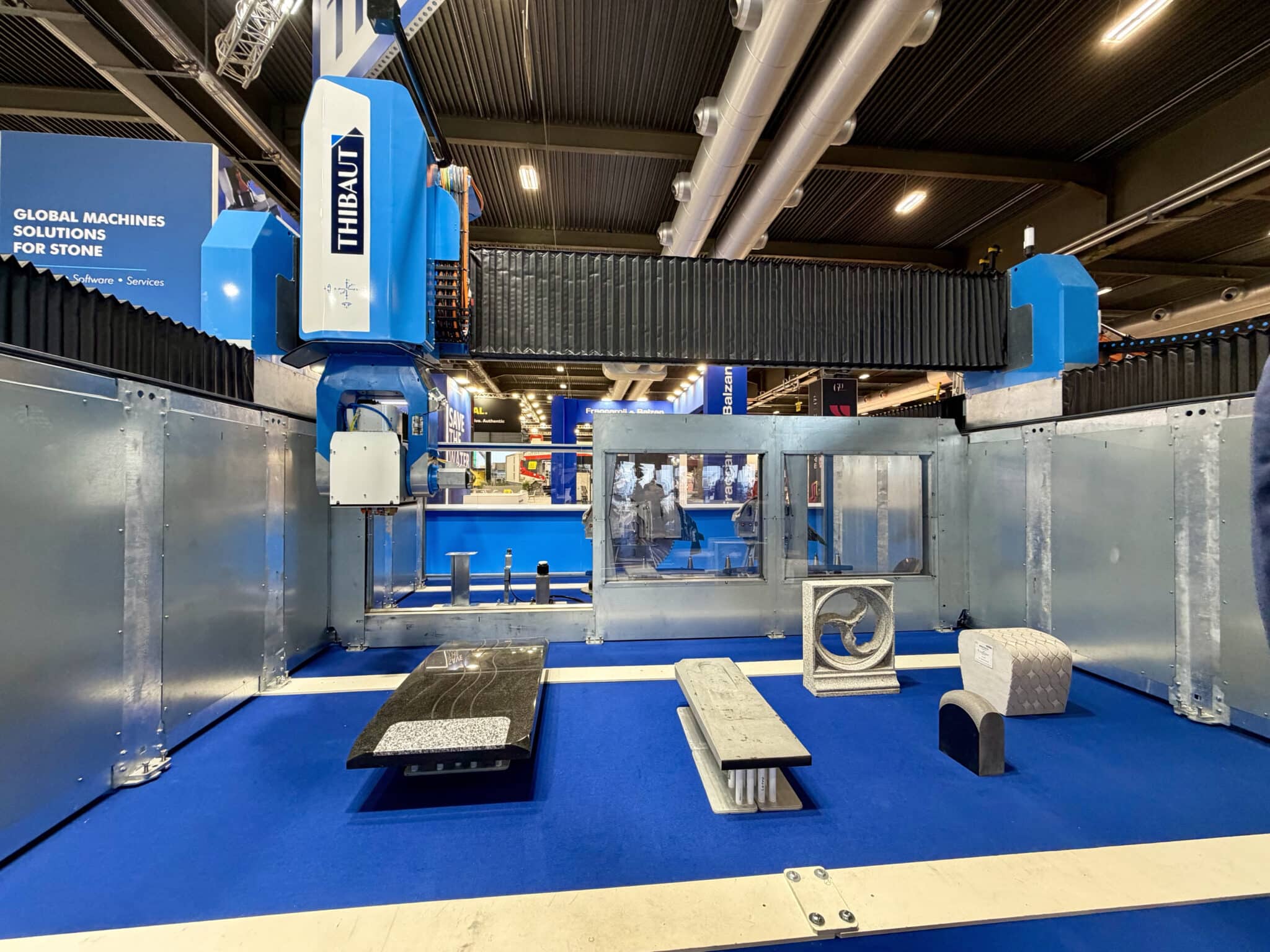

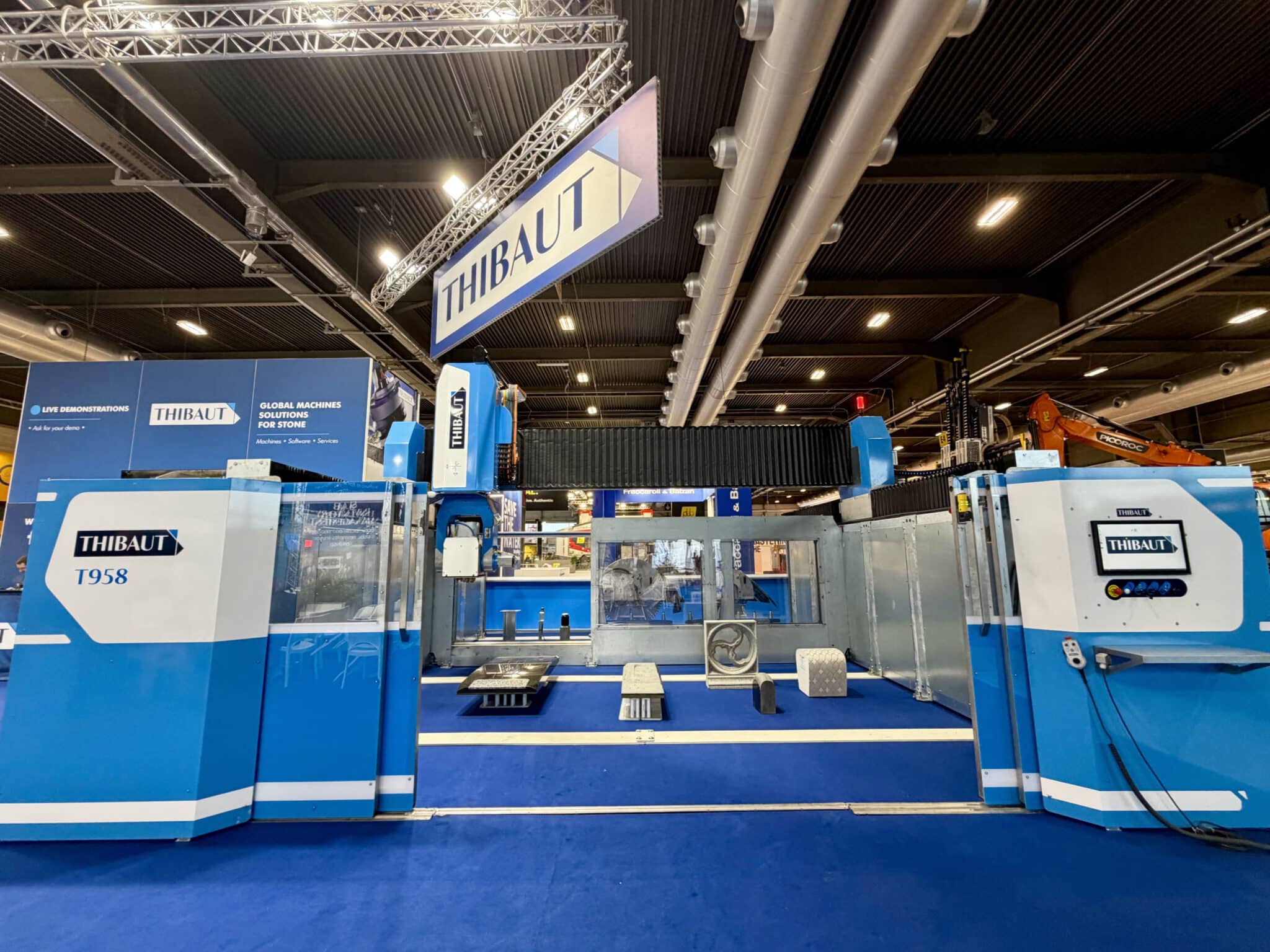

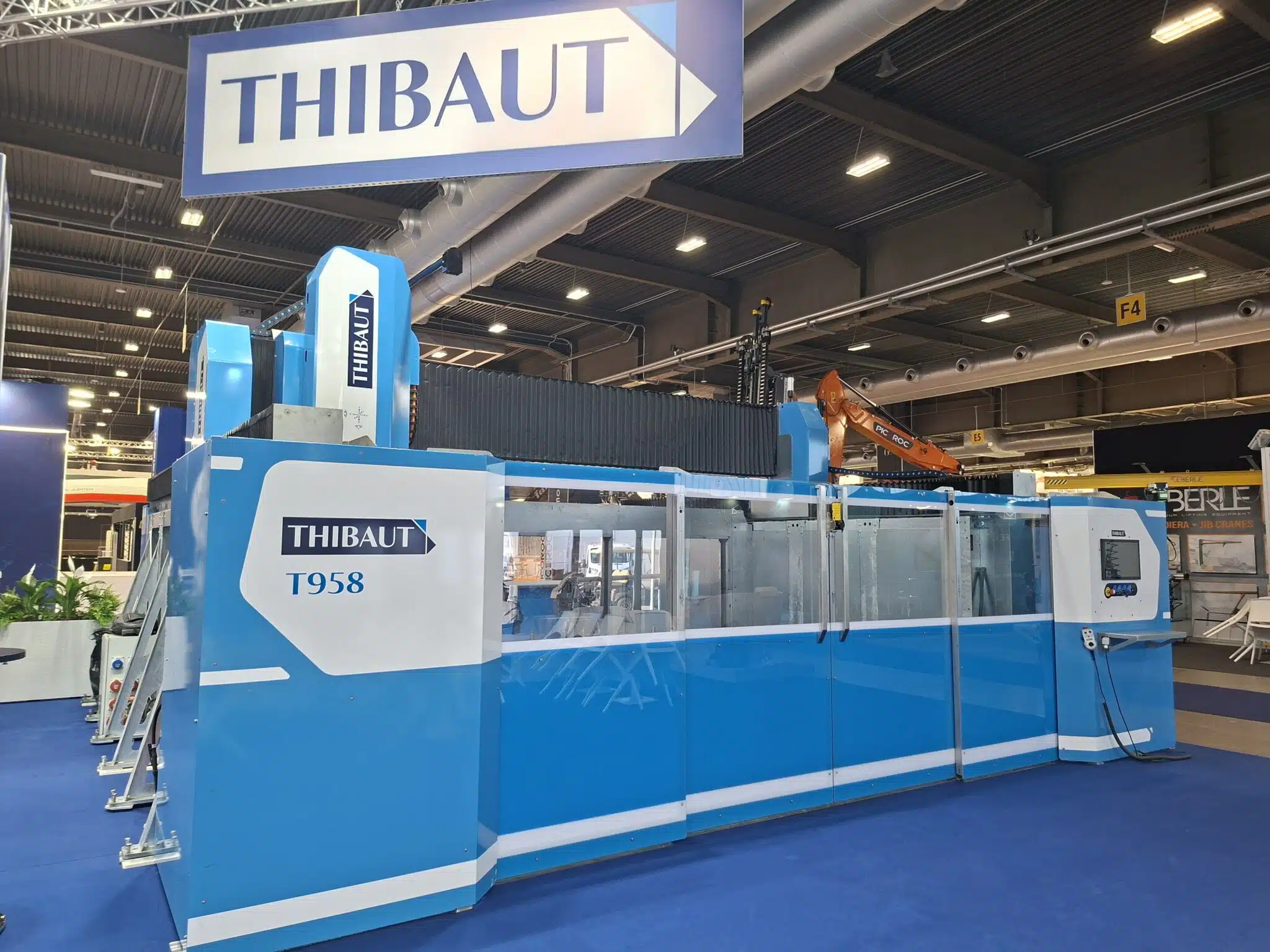

The T958 is designed for those who do not want to choose between speed and finish. Its solid structure ensures perfect stability, eliminating vibrations for exceptional shine when polishing edges.
By centralising all stages of manufacturing, the T958 reduces your operating costs and guarantees consistent quality, from the first millimetre to the last.
| Magasin d'outils | 82 |
|---|---|
| Logiciel(s) | Pilot, Express Work, T'Cut, T'Shape, T'Art, eT'CAM 4+1, T'CAD T'CAM |
| Diamètre mini du disque | 500 mm |
| Diamètre maxi du disque | 1100 mm |
| Profondeur de coupe maxi | 420 mm |
| Puissance de broche | 31 kW (S6) |
| Vitesse de rotation de la broche (tr/min) | 250 to 6000 |
| Pression | Pneumatic |
| Course X | 3,600 mm |
| Course Y | 4,600 mm (min.) |
| Course Z | 800 / 1200 mm |
| Dimensions de la table | 3,500 x 2,000 mm (min.) |
| Outils | BT50 |
| Alimentation en air | 24 m3/h > 6 bar |
| Arrosage extérieur - intérieur | 65 l/min - 15 l/min |
| Alimentation électrique | 49 kW / 65.7 hp |
| Encombrement | 7,635 x 8,505 x 4,825 mm |
| Masse | 17,800 kg |
