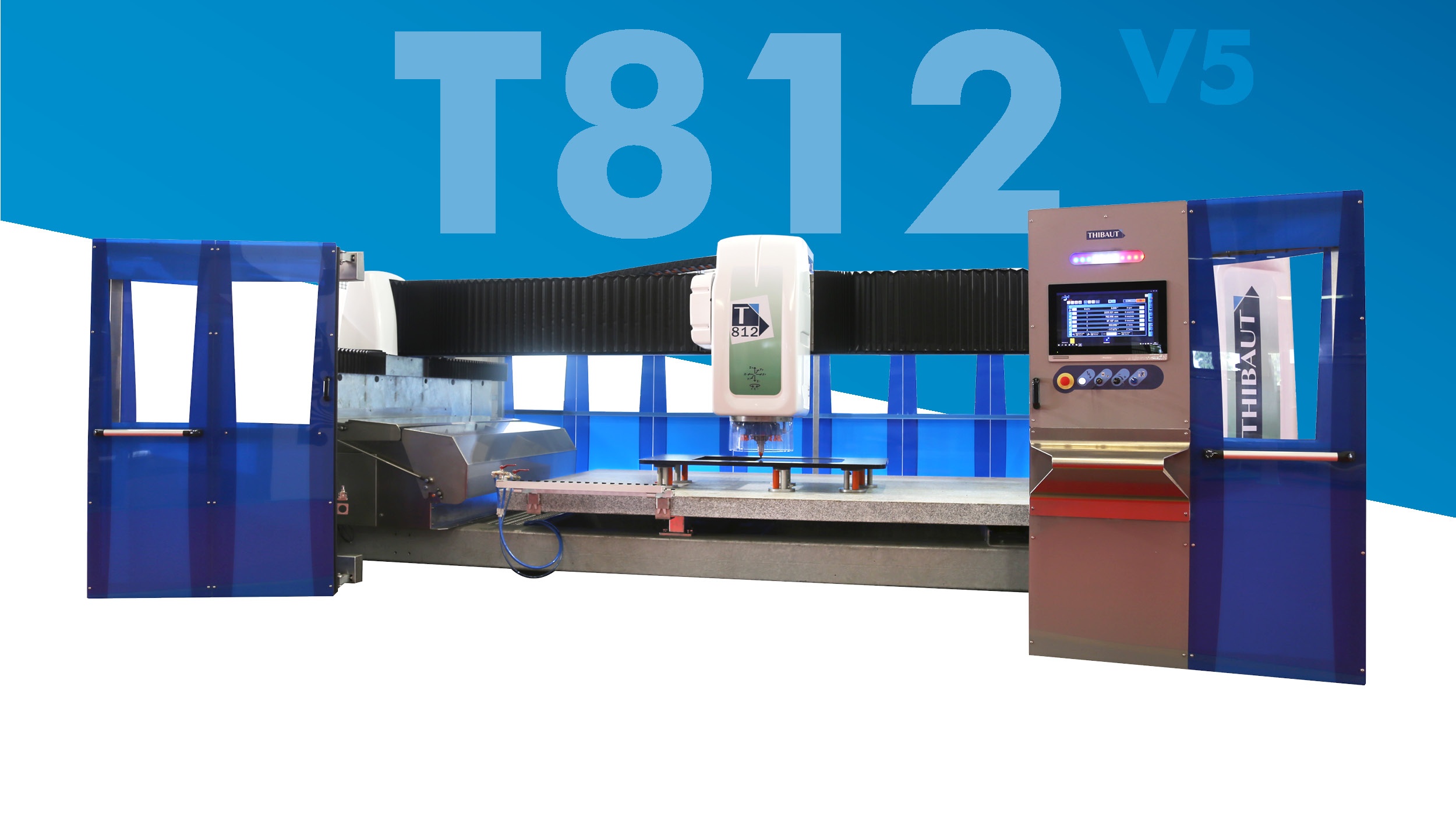

CNC machining centre / T812 V5 / 3 or 4 axis

CNC machining centre / T812 V5 / 3 or 4 axis

Combining our 50 Years of extensive knowledge and experience in multifunctional machines and listening closely to our customers, we have launched our new Thibaut T812 V5 Machining Centre.

The new design provides more efficiency, versatile and user friendly factors.



REQUEST MORE INFORMATION


Thibaut T812 V5 3-axis machining centre ideal for the monument

Technical data:

Working capacity mm
Version L XL
Stroke X 3380 3380
Stroke Y 1600 2000
Stroke Z 470 470

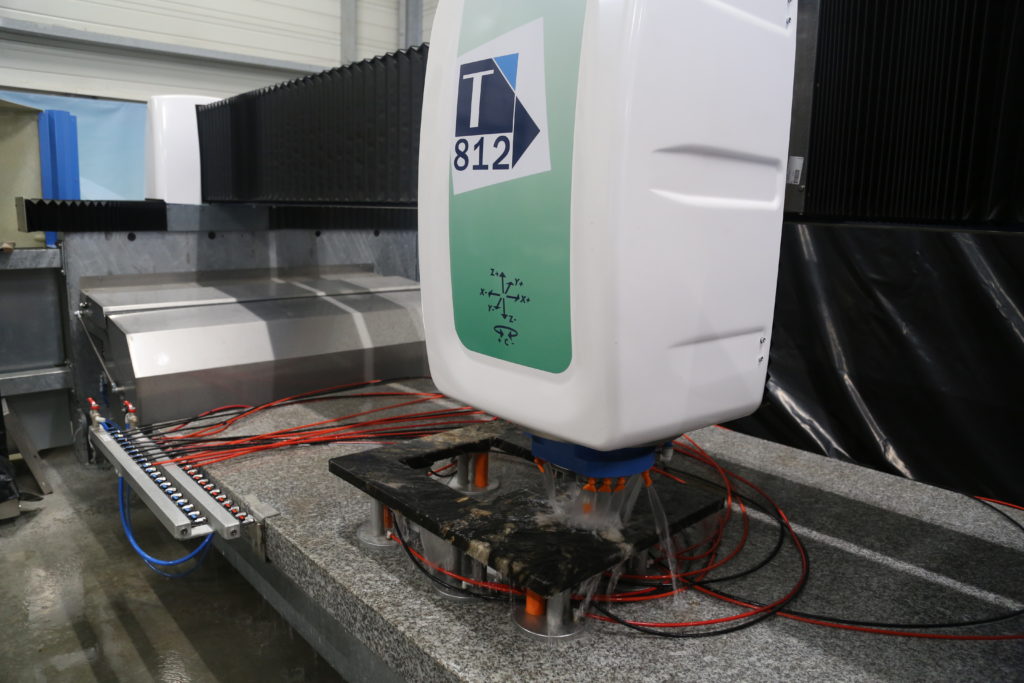

CNC machining centre T812 V5 Thibaut

Axes Speed m/min
X 40
Y 40
Z 15

Spindle motor power : 16.2kW (S6)

Tool rotation speed : 10 000 tr/min

Dual Water Feed: Internal and External Spindle Water Feed

Total weight : 7 000 kg

Standard equipment:

3 axes

Technical area with easy access Linear tool magazine with a capacity of (L) 25 tools, (XL) 31 tools
Galvanized frame Quick-opening housing
Touch-screen remote control Granite Working Table (L) 3375×1500 mm, (XL) 3375×1840 mm
Pneumatic pressure Safety Front Doors with Integrated 19″ console
Electrical cabinet Tool sensoring Device

4 axes

Technical area with easy access Rotating tool magazine (L and XL) with a capacity of 49 tools
Galvanized frame Quick-opening housing
Touch-screen remote control Granite Working Table (L) 3375×1500 mm, (XL) 3375×1840 mm
Pneumatic pressure Safety Front Doors with Integrated 19″ console
Electrical cabinet Tool sensoring Device

CNC machining centre T812 V5 Thibaut tools

Optional extras:

3 axes

“AR-3” Polishing Satellite Head Marble polishing plate
Tilting table Slab thickness sensor

4 axes

“AR-3” Polishing Satellite Head Marble polishing plate
Tilting table Slab thickness sensor
Laser projector Angle Drive Module



CNC machining centre T812 V5 Thibaut

Software:

Included:

Pilot Interface developed by Thibaut

logo pilot by thibaut

Pilot Thibaut T812 v5

Optional:

T’Art 2D shaping software designed for engraving and bas-reliefs
eT’CAM 2D shaping software designed for decoration
T’CAD/T’CAM 3D design and shaping software

Thibaut Customer Service:

customer service Thibaut

Our machines are connected to internet and equipped with remote connection software with firewall. This allows quick diagnosis and remote intervention by our Thibaut Customer Service technicians.

A Thibaut Customer Space will give you access to the available documentation of your Thibaut machines and you can make your requests to Thibaut Customer Service.


Quickly request a quote from your sales representative or via the contact form.
